Mannheim Pfeil VIII - Pendantebolicht_mannheim_pfeil_8 Mannheim Pfeil VIII - Pendant

Mannheim Pfeil VIII - PendantMannheim Pfeil VIII

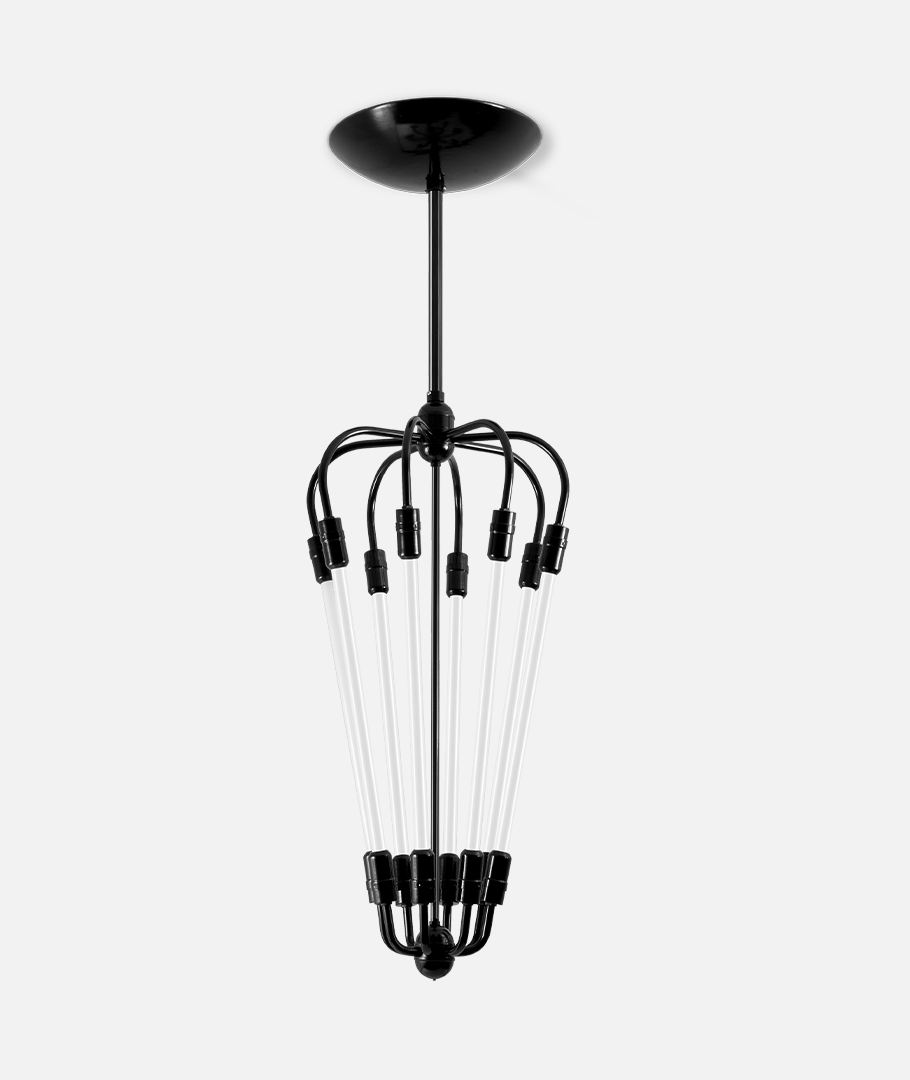

Mannheim Pfeil VIII - Pendant

Lamp with T8 fluorescent tubes 8 x 18 watts, metal parts made of refined steel, tubes ⌀ 16 mm, jet black, pendant tube ⌀ 25 mm, suspension height ceiling to lower edge of lamp 1250 mm, with electronic ballast in semicircular canopy ⌀ 400 mm, height 80 mm.

ebolicht_logo

A purpose-built eight-lamp version with tried-and-tested standard fluorescent tubes. One of the first neon lamps made from traditionally manufactured metal components. Thanks to its unusual design, it is in demand wherever an unusual accent is required. It is particularly effective in high rooms.

For T8 LED tube

Lamp length / Illuminant length

500 mm / 600 mm

Frame height 1080 mm


For T8 and T12 fluorescent tubes

Lamp length / Illuminant length (T8/T12)

500 mm / 590 mm (8x18/20 Watt)

Frame height 1080 mm

Ballasts Dim. 1-10 Volt or Dali-Dim. possible.

Suspension height ceiling to lower edge of lamp

1250 mm
1500 mm
1750 mm
2000 mm

Extras

Special suspension heights available.

Steel

Raw - S/R

Raw - S/R

Clear lacquer matt - S/M

Clear lacquer matt - S/M

Clear lacquer glossy - S/G

Clear lacquer glossy - S/G

Pure white - S/W

Pure white - S/W

Jet black - S/S

Jet black - S/S

RAL - S/RAL ....

RAL - S/RAL ....

Canopies

Mannheim ⌀ 400 mm

⌀ 400 mm / H 80 mm

t-8
t-12

ce
230v_50hz
pruefzeichen
ip_20
